ELM PS 6 (10) kV

ELM PS are prefabricated substation of various types in voltage class
6 (10)/0.4 kV and rated power up to 6300 kVA, which are successfully operated at large industrial enterprises and infrastructure facilities with increased requirements for power supply reliability.

>371
products manufactured and delivered to Customer sites

Main advantages

Maximum Safety

High reliability and quality of PS

Modular building design capabilities

Convenient operation

Monitoring, diagnostics and control

Low total cost of ownership

01 Maximum Safety

The design of busbar bridges, a high degree of the LVS sectioning, there are excessive pressure relief valves and protective screens to prevent touching to live parts when the modules are removed will provide the top level of personnel safety during prefabricated substation (PS) equipment maintenance and repair.

02 High reliability and quality of PS

Test reports in independent testing centers confirm the high reliability of equipment used in prefabricated substation (PS).
Developed design of power units using high-quality components and an efficiently organized manufacturing process allows us to provide the Customer with reliable PS electrical equipment which suits any project custom requirements.

03 Modular building design capabilities

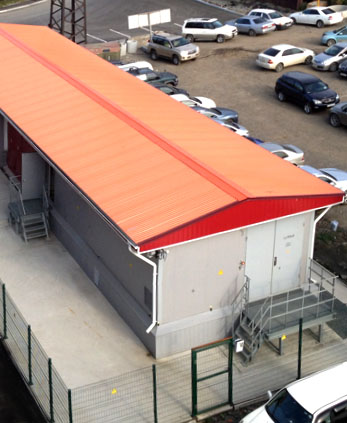

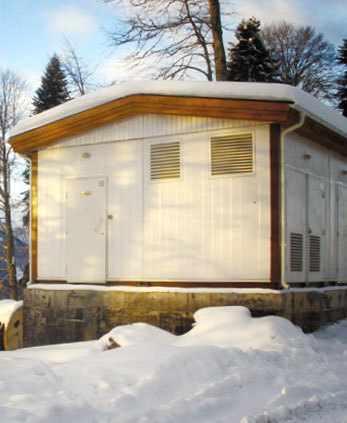

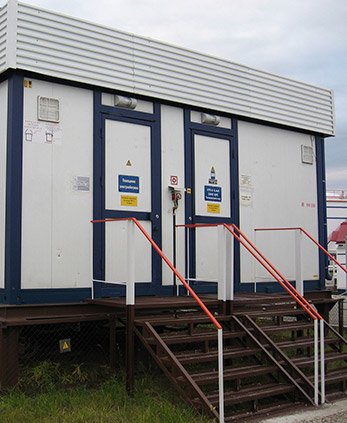

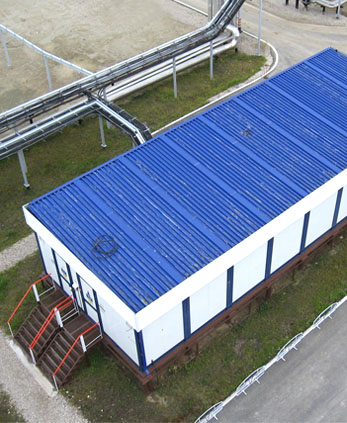

The reinforced all-welded steel structure of the block-type prefabricated substation (BPS) provides 100% rigidity of the modular building modules and very easy to transport and installation of the modules on various foundations.
Doors and gates provide an opportunity personnel to mount additional equipment without dismantling modular building structural elements, because it open 120 ° in ELM BPS.
Detailed technological design development of the product makes it possible to manufacture various forms of modular building modules, which provide the implementation of different layouts in the BPS.

04 Convenient operation

3D modeling of quipment and all additional units provides the correct ergonomics of the prefabricated substation (PS), convenient access to equipment, current transformers, busbar bridges and cable connections. Product design provides for connections of the main circuits with stabilization of thermal enlargementns that do not require maintenance during operation.
QR codes, which are located on the facades of the PS equipment, provide quick access for personnel to the technical documentation for equipment and contact numbers of technical support center.

05 Monitoring, diagnostics and control

Prefabricated substation (PS) is directly integrated with APCS and remote control systems of plants, automated dispatch control systems, adaptive distribution management systems (ADMS) and other data analytics systems using the comprehensive list of data protocols including IEC 61850.
Control and monitoring system of PS supports diagnostics and equipment performance data transfer to maintenance and repair system to enable on-site predictive equipment maintenance.

06 Low total cost of ownership

We leverage special prices for components by leading Russian and global manufacturers, our own machine fleet and a short production cycle to offer the best prefabricated substation (PS) price to our customers. Low maintenance frequency along with minimized costs and prolonged service life help to minimize the total cost of ELM PS ownership.

Modifications of ELM PS 6 (10) kV

Get the cost calculation

-01

ELM PS 6(10) kV

Rated power of transformer – up to 6300 kVA
Indoor ELM PS provides for installation in existing capital buildings or modules for use in normal and aggressive (corrosion) environments.

-02

ELM BPS 6(10) kV

Rated power of transformer – up to 4000 kVA
Indoor BPS provides for the placement of all equipment in transport modules of high factory readiness for use in normal and aggressive (corrosion) environments.

All photos

Information
materials

PS ELM 6(10) kV flyer

Download document

PS ELM 6(10) kV catalog

Download document

Documentation

Get a consultation

Questionnaires

PS ELM 6(10) kV questionnaire.dwg PS ELM 6(10) kV questionnaire.pdf

Licenses and certificates

Declaration of Conformity: ELM Prefabricated Supstation up to (inclusive) 6300 kVA up to (inclusive) 35 kV Declaration of Conformity: ELM Block-type Prefabricated Supstation 25-4000 kVA 6(10) kV (inclusive) Certificates of BPS ELM compliance with industrial safety regulations for 25-4000 kVA 6(10) kV

Service we provide with this product

Get the cost calculation

24/7 Customer support

Service center and regional support centers

Maintenance and warranty services

Technical and economic evaluation

Development of design concepts

Preparation of work scope lists

Preparation of recommendations for the organization of foundations

Factory acceptance tests of equipment

Documentation in English and other languages

ELM PS 6 (10) kV consists of:

ELTEMA MV Switchgear 6 (10) kV

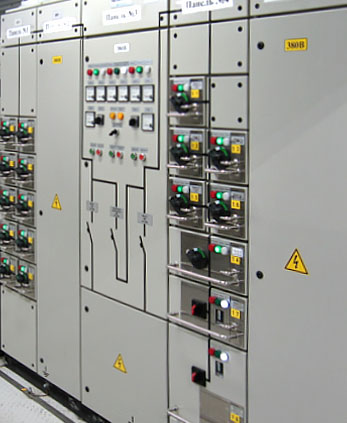

Assol LVS

DC panel «ExOn»

Assol auxiliary switchboard

Protection relay panels

Substation automation panels

Energy meters panels

Prefabricated substations 10 kV and Low voltage switchgear monitoring and control systems

Drive control systems over 1000 V

Market-Specific Solutions

20 years of working with Customers from various industries have allowed us to study industry specifics in detail and create individual solutions that fully meet the needs of this industry and the requirements of individual Customers from this industry.

Oil, Gas and Petrochemistry

Generation, Transmission&Distribution of Electrical Energy

Industry&Infrastructure

Renewable energy

Satisfied customers
about products and cooperation with us

View all feedbacks

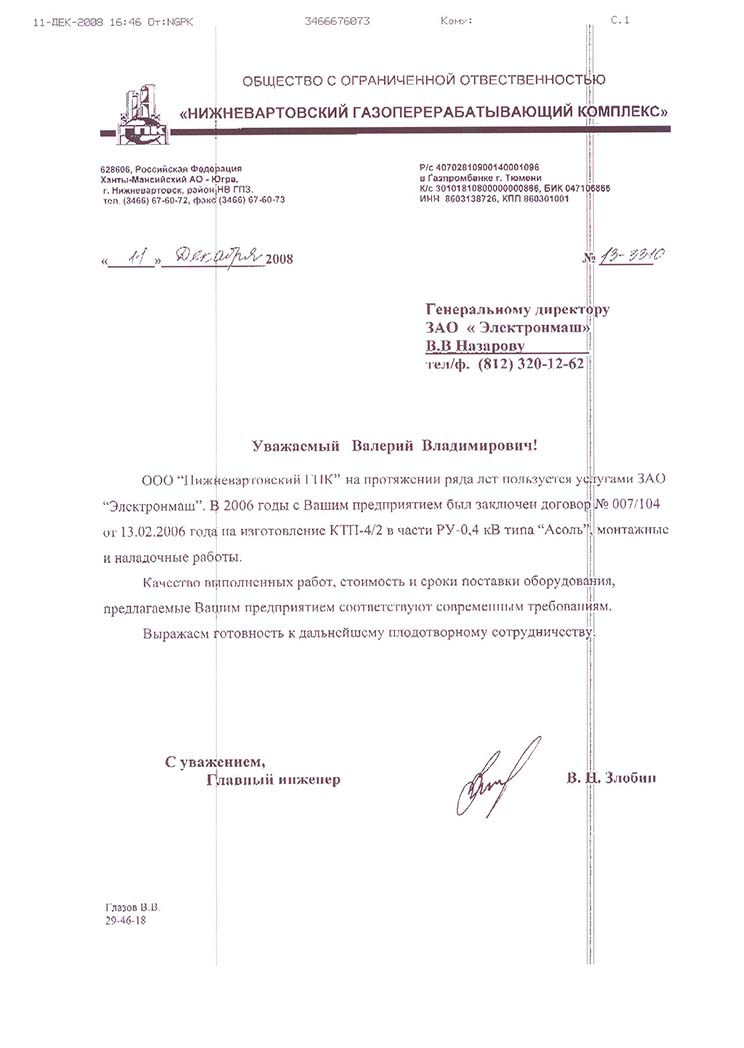

Nizhnevartovsk GPC LLC

Energy Interregional Holding Association LLC

Rosengineering CJSC

Voronezhsintezkauchuk JSC

Customer's sites: Nizhnevartovsk gas processing complex in the Tyumen region

Equipment: Prefabricated Substation ELM PS-4/2 in the part of switchgear-0.4 kV Assol LVS
Services: installation and commissioning

There are no compliants on quality and scope of supply, there are no remarks on the operation of the equipment.
