Monitoring and control systems integrated into Medium-voltage switchgears

Medium-voltage switchgear monitoring and control systems is a modern software and hardware complex that is part of "Eltema" MVS, enabling the implementation of remote control, diagnostics, and monitoring of the technical condition of equipment at energy facilities in real-time.

>110
products manufactured and delivered to Customer sites

Main advantages

Information security

High reliability and quality

Ease of operation

Reduction of operating and administrative expenses (OPEX)

Reduction of commissioning time

Integration of monitoring and control system into related automated systems

01 Information security

Information security when using the monitoring and control system is ensured by a multi-level password system with differentiation of levels of personnel access to remote control functions and changes in monitoring and control systems settings, the ability of the system to operate in the technological local area network (LAN) of the power facility, as well as flexible adaptation and readiness to integrate standard solutions of the monitoring and control system digital infrastructure into the information security system of the Customer's facilities.

02 High reliability and quality

MVS equipment with an installed monitoring and diagnostics system guarantees a high level of reliability of power supply at the power facility due to a unique set of analytical functions. It allows predicting and identifying pre-emergency operating modes and developing defects, monitoring the integrity of digital connections of secondary devices, monitoring the residual mechanical and switching resource of the circuit breaker, cassette-withdrawable element and earthing knives, as well as determining and signaling about deviations in busbar temperatures in the switchgear. It also allows informing operating services for prompt action.

03 Ease of operation

MVS equipment with an installed monitoring and control system will ensure a high level of ease of maintenance and operation due to the extended analytical functionality of the system. It carries out predictive monitoring of the technical condition of all components, remote control of the power switch, cassette-withdrawable element and grounding knife. It also carries out timely SMS and e-mail notification of the equipment condition. The presence of QR codes in the system will provide quick access for personnel to technical documentation and contact numbers of the technical support center.

04 Reduction of operating and administrative expenses (OPEX)

MV switchgear equipment with a built-in control and monitoring system manufactured by Electronmash JSC will reduce operating costs for equipment maintenance and operation (OPEX). Thanks to advanced analytical tools, the control and monitoring system predicts the condition of the switchgear, makes it possible to organize maintenance based on the technical condition, while the organization of remote switching with video monitoring of the position of switchgear elements allows eliminating the constant presence of personnel at the power facility. All this ensures a minimum payback period for the project for the Customer in combination with a long service life of the equipment.

05 Reduction of commissioning time

Reduction of commissioning time of MVS with integrated monitoring and control system is achieved by the ability to perform unit-by-unit adjustment and testing of functional units, as well as most of the work on checking all technological functions and signals at the site of the manufacturer, and only to install and commission the equipment at the facility.

The diagnostic algorithms built into the control system significantly unload the computing power of the SCADA system to identify deviations from normal equipment operating modes, and the availability of a list of developed standard signals and algorithms will ensure the rapid development of working documentation.

06 Integration of monitoring and control system into related automated systems

The MVS monitoring and control system is based on modern hardware and software with existing standard solutions based on the principle of distributed topology of data collection and transmission using standard international digital data transmission protocols IEC 61850, 60870-101/104.

Due to the presence in the monitoring and control system of standard algorithms for diagnostics of the technical condition, checklists for maintenance and repair of equipment, integrated libraries of elements with the necessary list of analyzed operational data, the switchgear with the installed monitoring and control system is completely ready for integration into related automated systems for processing and providing all operational data and optimizing business processes for maintenance and repair of equipment.

Modifications of Monitoring and control systems integrated into MVS

Get the cost calculation

-01

Система мониторинга и управления для КРУ 6 10 кВ Элтима

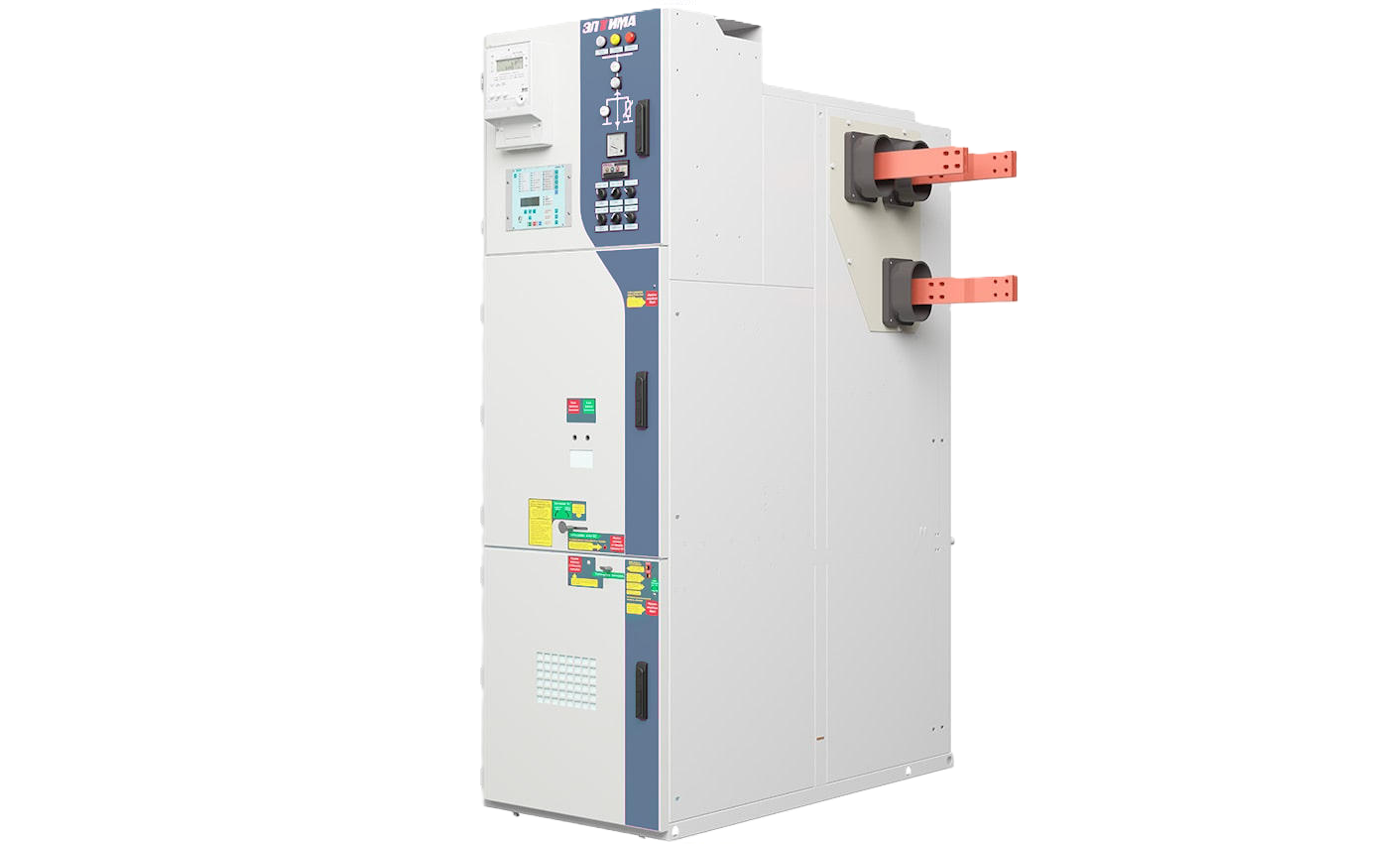

СМУ КРУ 6(10) кВ «ЭЛТИМА»

Система мониторинга для предиктивного обслуживания, диагностики и управления всем оборудованием и компонентами КРУ 6(10) кВ «ЭЛТИМА»

-02

Система мониторинга и управления для КРУ 35 кВ Элтима

СМУ КРУ 35 кВ «ЭЛТИМА+»

Система мониторинга для предиктивного обслуживания, диагностики и управления всем оборудованием и компонентами КРУ 35 кВ «ЭЛТИМА+»

Information
materials

ELTEMA MVS 6(10) kV flyer

Download document

ELTEMA Digital MVS 6(10) kV flyer

Download document

ELTEMA MVS 6(10) kV catalog

Download document

ELTEMA+ MVS 35 kV flyer

Download document

ELTEMA+ MVS 35 kV catalog

Download document

Service we provide with this product

Get the cost calculation

24/7 Customer support

Service center and regional support centers

Warranty service

Technical and economic evaluation

Предоставление списка всех сигналов

Гибкое изменение конфигурации СМУ по требованию Заказчика

Поузловая наладка и испытания функциональных узлов

Проверка всех технологических функций и сигналов в заводских условиях

Documentation in English and other languages

Monitoring and control systems integrated into MVS is used:

ELTEMA MV Switchgear 6 (10) kV

ELTEMA+ MV Switchgear 35 kV

Market-Specific Solutions

25 years of working with Customers from various industries have allowed us to study industry specifics in detail and create individual solutions that fully meet the needs of this industry and the requirements of individual Customers from this industry.

Oil, Gas and Petrochemistry

Generation, Transmission&Distribution of Electrical Energy

Industry&Infrastructure

Renewable energy
